AQ

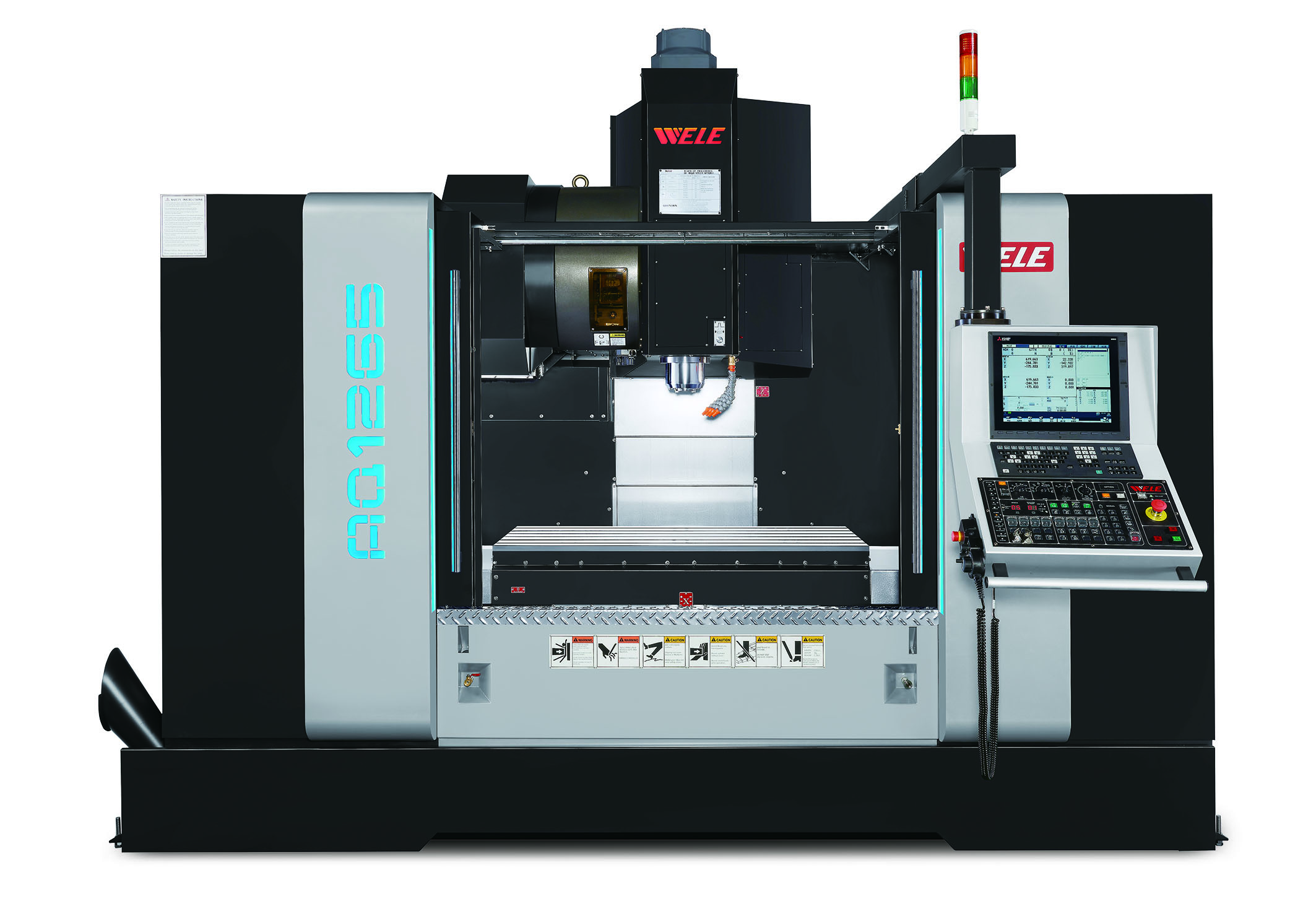

Linear Guideway type Vertical Machining Center

• Developed for high performance axial movement by ball/roller guide way, high response on feed system and higher spindle speed with 10000rpm or more.
• Well arrangement for light alloy material cutting and aluminum application.
• Y axis available to up to 650mm & X axis available to up from 1200mm thru 1600mm.
• 48m/min fast feed movement is to provide high response on this field.

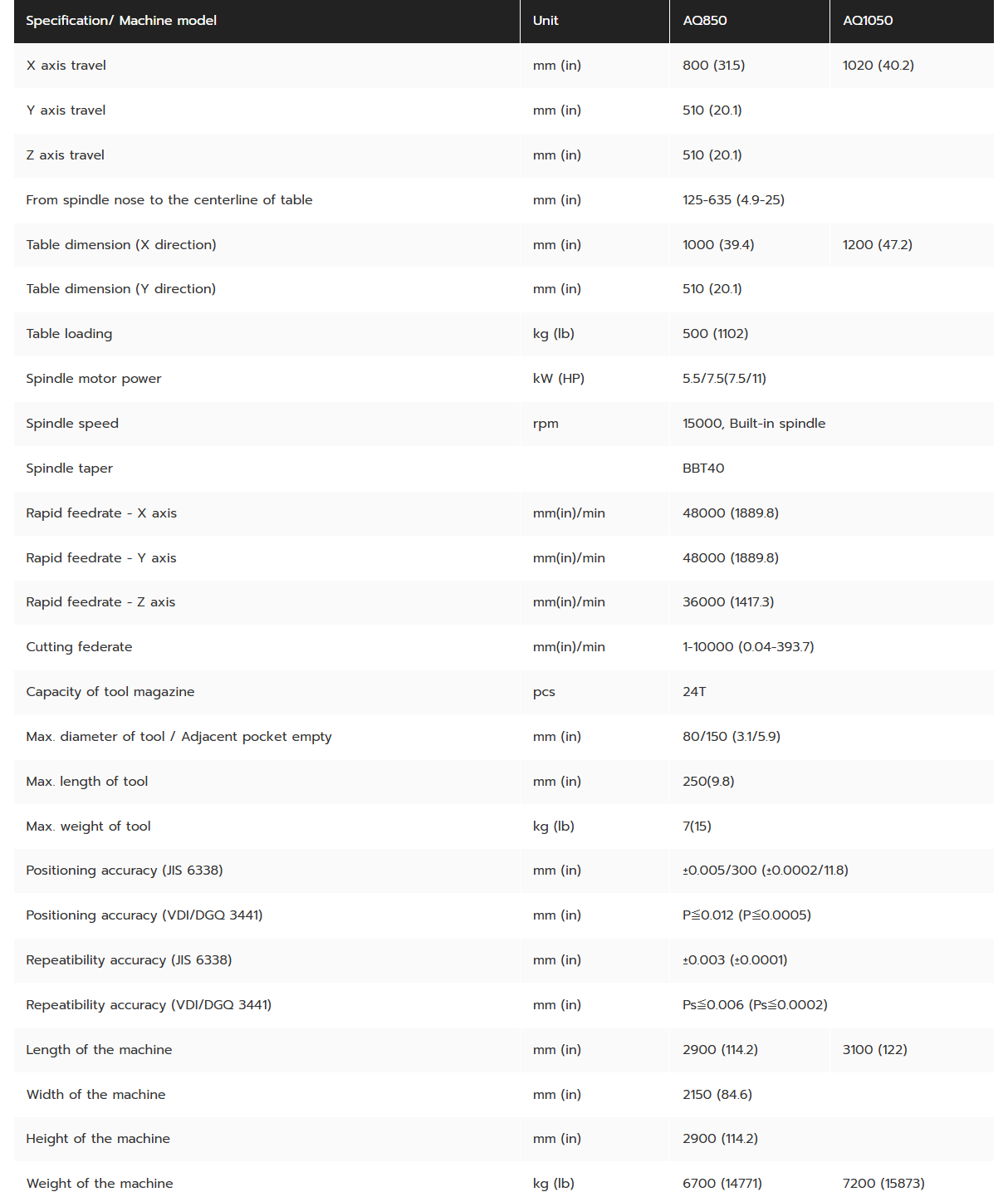

AQx50

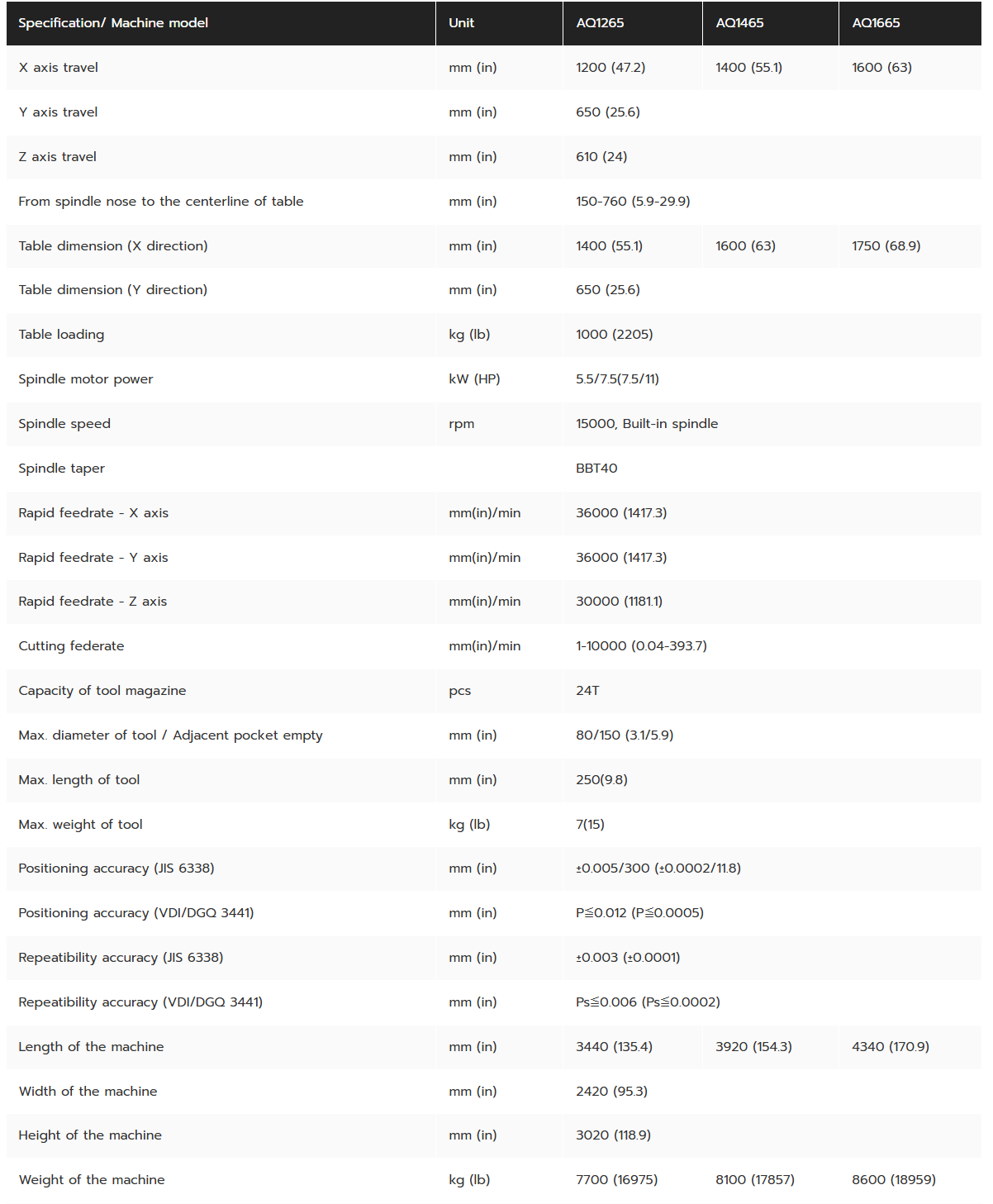

AQx65
